Boxer 2-leaf

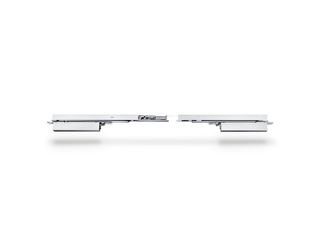

Boxer ISM Integrated door closer system for double leaf doors with closing sequence control

  • System comprising two Boxer door closers and an ISM guide rail
  • Closing force with variable adjustment of EN2-4 or EN3-6
  • For right and left hand doors without the need for conversion
  • Door closer is embedded in the door leaf and frame and fulfils the highest design demands
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Hydraulic latching action which accelerates the door shortly before the closed position
Show more
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • All functions can be adjusted in the installed state
Contact us

Integrated door closer system for double leaf doors with closing sequence control

Application Areas

  • Fire and smoke protection doors, proof of suitability for the door required
  • Double-leaf single-action doors
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width, for door weights up to 180 kg
  • Minimum hinge clearance 1300 mm, minimum width of the passive leaf 540 mm
  • For door leaf thicknesses from 40 mm
  • Integrated installation

Product specifications

Boxer ISM
