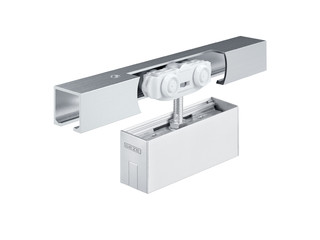

Rollan 40 NT glass Sliding door fitting system for glass doors with a leaf weight of 40 kg
- Sliding door fitting for leaf weight up to 40 kg
- For glass leaves with a 30 mm glass clamping plate
- Uniform track for Rollan 40 and 80 allows for easy adjustment to changing applications
- Smooth-running roller carriages that can be set in motion with little force
- Easy adjustment of the space between the door leaf and track
- Retractable suspension plates allow for the door to be installed with a small clearance between the track and the upper edge of the door
- Tested for durability in accordance with DIN EN 1527 to 50,000 testing cycles
- Closed aluminium track protects against ingress of dust and dirt
- Simple, direct ceiling installation or bracket mounting on ceiling and wall
- Simple adjustment of the space between door leaf and rail / readjustment also possible when installed
Application Areas
- For lightweight interior sliding doors
- For passage doors or partition walls in living and office areas
- Lower space requirements for the door fitting means simple installation even in tight areas
- Single and multiple-leaf sliding doors
- Installation on the ceiling or wall
Technical data
| Rollan 40 NT glass | |
| Leaf material | Toughened safety glass (ESG-H), Laminated safety glass (LSG from toughened safety glass) |
| Leaf weight (max.) | 40 kg |
| Number of leaves | 1-leaf |
| Leaf width (min.) | 500 mm |
| Leaf width (max.) | 1420 mm |
| Leaf height (max.) | 3000 mm |
| Leaf thickness from | 8 mm |
| Leaf thickness to | 12 mm |
| Track geometry | straight |
| EN 1670 Corrosion resistance | 1 (acc. to EN 1670: Class 0 = none defined, Class 1 = low, Class 2 medium, Class 3 = high, Class 4 = very high, Class 5 = extraordinary) |
| EN 1527 Continuous function | 25,000 test cycles |
| Type of installation | Wall |
| Manual operation | Yes |
| Colour | Mill finish |
