Perlan 140 set for timber leaves

Glass clamping plate 30 mm set, with covering Glass clamping plate 30 mm including cover for leaf weights up to 80 kg

Set glass clamping plate 30mm individually covered / Set glass clamping plate 30mm continuously blended
  • Clamping fitting for glass panels with leaf weights up to 80 kg
Contact us

Glass clamping plate 30 mm set, with covering

Application Areas

  • For leaf weights up to 80 kg
  • Perlan sliding door fitting
  • For Rollan sliding door fitting

Technical data

Glass clamping plate 30 mm set, with covering
Leaf material Glass
Pane thickness 8 - 12 mm

Downloads

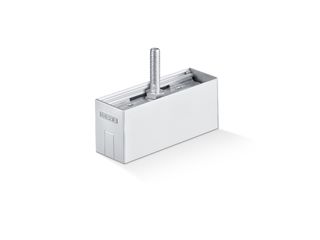

Set glass clamping plate 30mm individually covered / Set glass clamping plate 30mm continuously blended Product shot (937967)
LABELLING OBLIGATION:  © GEZE GmbH
Glass clamping plate 30 mm set, with covering Product data sheet EN
Installation instructions (881956)

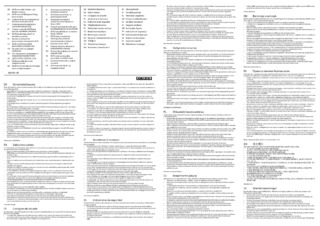

Supplementary sheet BG CS DA DE EL EN ES ET FI FR GA HU IT LT LV NL PL PT RO SK SL SV ZH (872768)

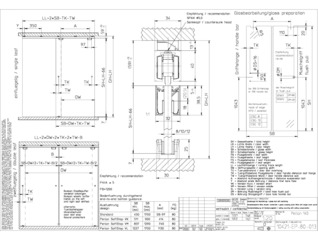

Installation drawing DE EN (754084)

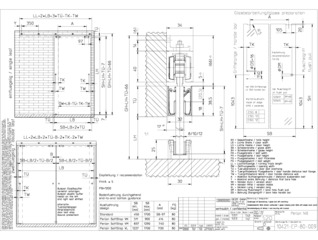

Installation drawing DE EN (754074)

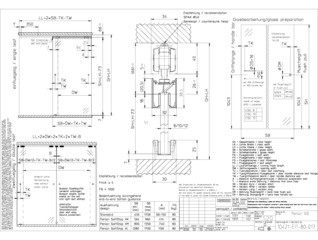

Installation drawing DE EN (754724)
Installation drawing DE EN (754907)

Variants & Accessories

Floor guide for glass leaf (adjustable)
Accessories

Floor guide for glass leaf

Floor guide with variable adjustment for glass thicknesses 8, 10 and 12 mm

Product details
Perlan Duosync set for glass leaves
Accessories

Perlan Duosync set for glass leaves

Duosync - manual drive for glass leaves

Product details
LSG gluing bracket set for glass clamping plate30mm (without glue)
Accessories

LSG glueing bracket set

Aluminium glueing bracket for LSG and glass clamping plate 30

Product details
