Light curtains
GC 341 Safety sensor for automatic doors
- Reliable detection up to an installation height of 3500 mm
- Four adjustable light curtain configurations without additional light prisms
- Convenient commissioning via dip switch
Application Areas
- Protection of automatic sliding doors
- Automatic sliding doors without protective leaves to protect the secondary closing edge
- Interior and exterior doors
Technical data
| GC 341 | |
| Dimensions | 267 x 61 x 38 mm |
| Technology | Active infrared beams |
| Number of active infrared detectors | 2 |
| Operating voltage | 12-30 V DC / 12-24 V AC |
| Operating current | 100 mA |
| IP rating | IP54 |
| Connection type | System plug-type connector |
| Connector cable length | 3000 mm |
| Installation height (min.) | 2000 mm |
| Installation height (max.) | 3500 mm |
| Service temperature | -20 - 55 °C |
| Humidity | < 80% relative, non-condensing |
| Standard conformity | DIN 18650. EN 16005 |
Downloads

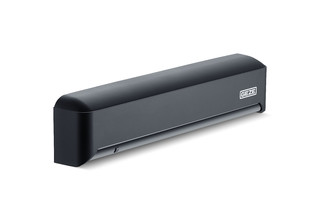

Product shot
GC 341 Light curtain
LABELLING OBLIGATION:
© GEZE GmbH

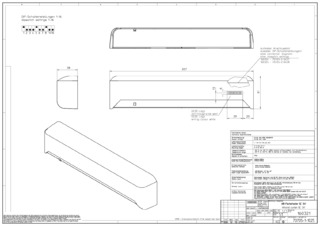

Product scale drawing
Product data sheet
Installation instructions
Type examination certificate
Declaration of conformity
